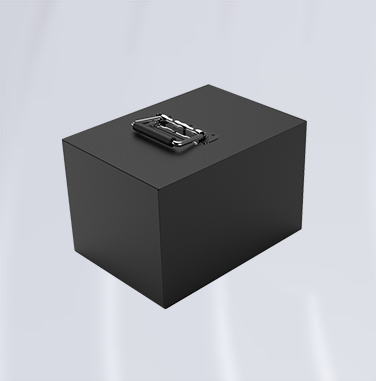

38.4V-32Ah/AGV lithium battery
Features
- Use brand new A-grade battery cells, which have the highest energy density and stability on the market
- Adopt BMS software management chip, accurate data transmission, precise temperature control to eliminate safety hazards to the greatest extent
- Comprehensive safety protection functions, such as overcharge, over discharge, over current, over temperature, short circuit, etc.
- Shockproof: The shockproof structure is filled inside the cold-rolled sheet metal shell to achieve high safety and high reliability requirements
- High current: high current output, maximum 3C output
- With balancing function, the battery pack has a long cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
- Meet global certification qualification report requirements: UL, KC, CE, CB and other certifications
Description
| Serial number | project | Specifications |
| 1 | Nominal capacity | 32Ah |
| 2 | Nominal voltage | 38.4V |
| 4 | Maximum charging current | 10A |
| 7 | Maximum continuous discharge current | 30 A |
| 8 | Charging voltage | 43.8V |
| 9 | Instantaneous discharge current | 96A |
| 10 | Operating temperature | -20 ºC to 65 ºC |
| 11 | Storage temperature | 0 ºC to 40 ºC |
| 12 | Initial size | 320*220*125mm |
| 13 | Cycle life | 2000 cycles ≥70% rated capacity |
| 14 | communication | Support 485 communication |
